NITECORE R40: THE FIRST WIRELESS CHARGING THROWER IN THE INDUSTRY

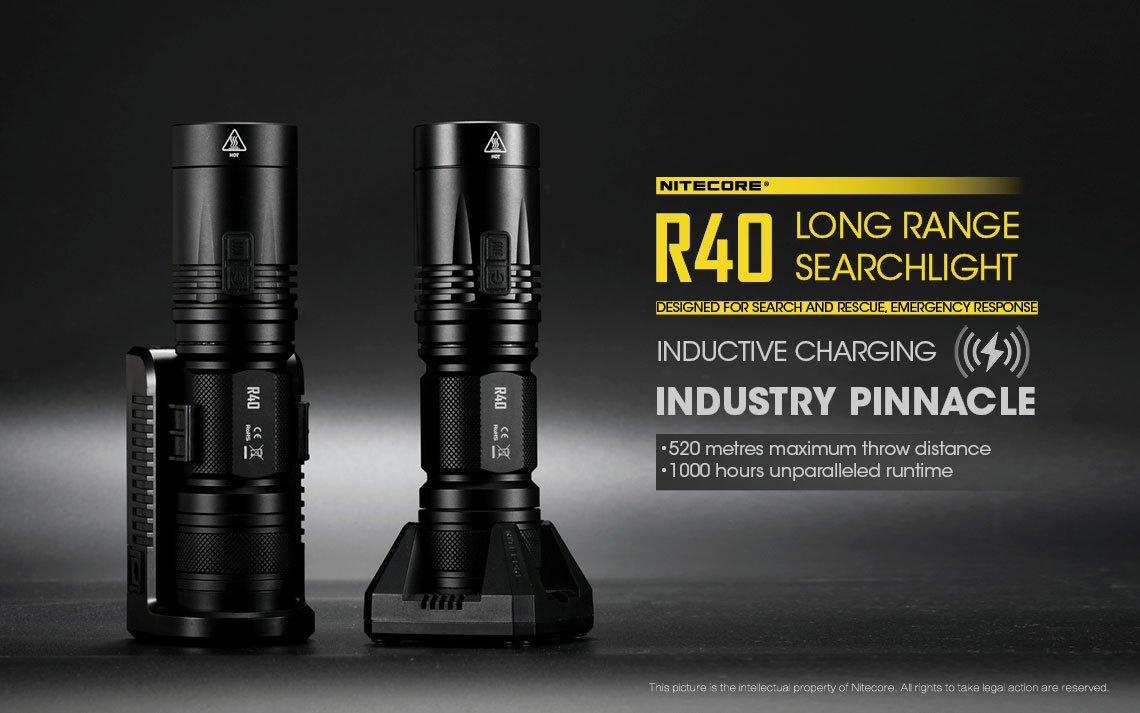

Nitecore R40 is designed to be the first wireless charging thrower in the flashlight industry designed for search and rescue, emergency response.

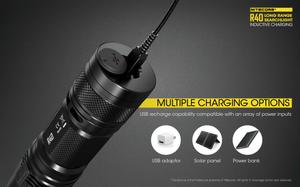

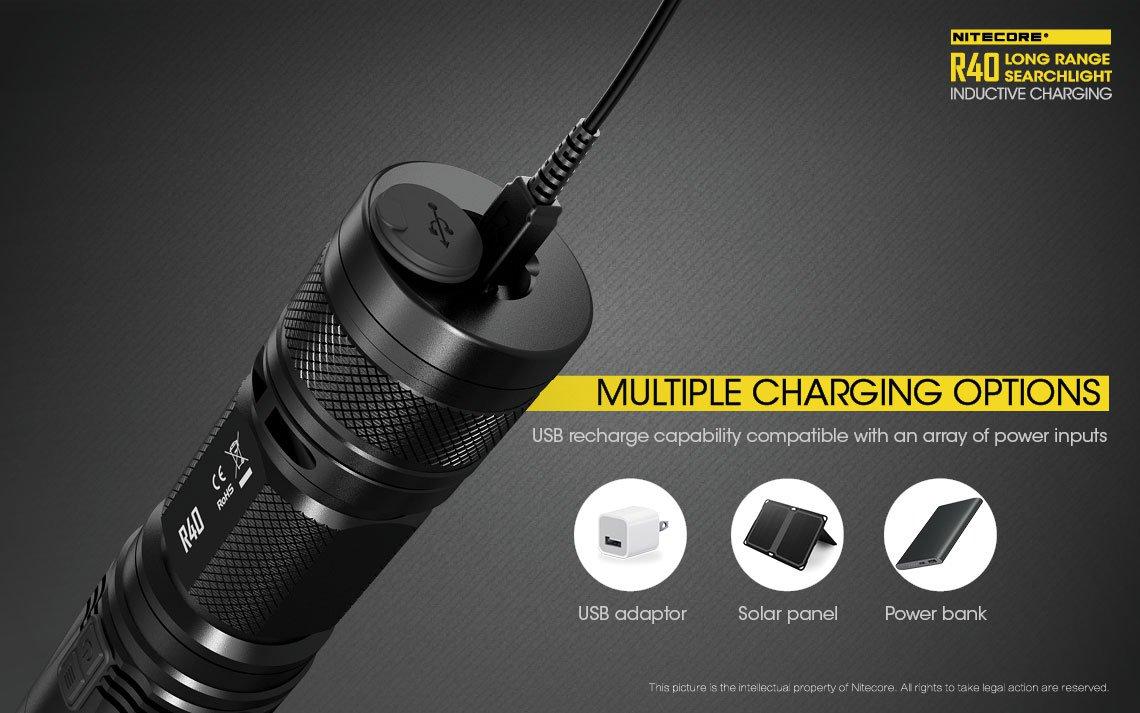

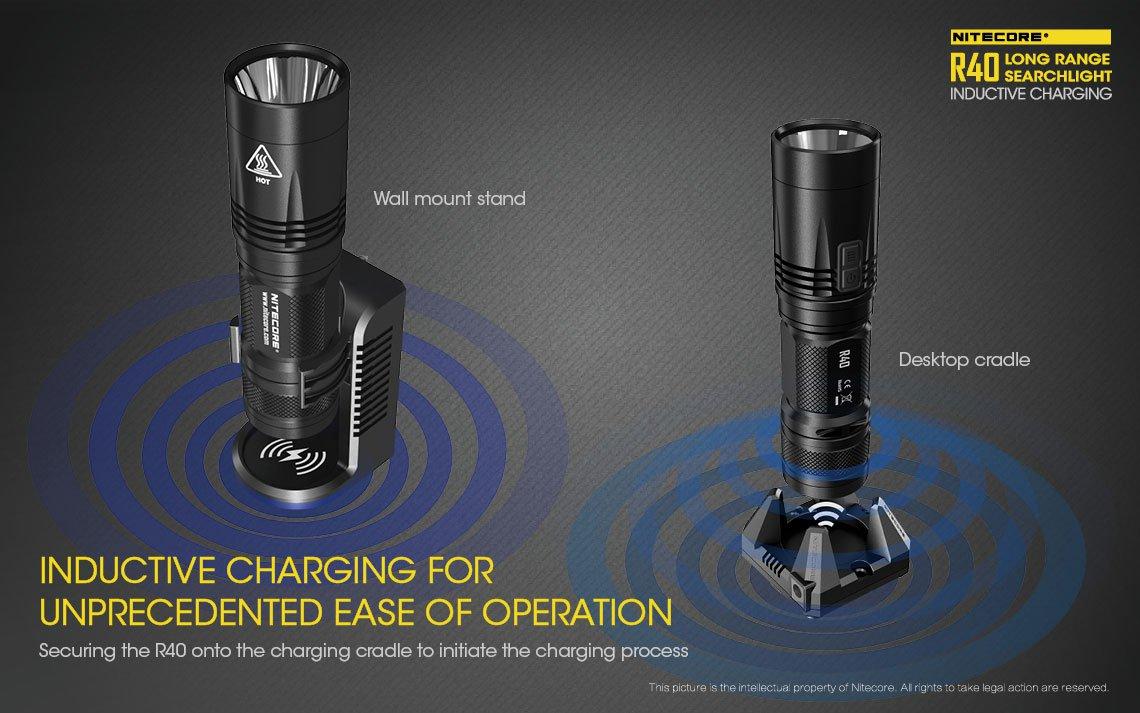

To begin with, it can power the included Li-ion battery in three different ways: the USB charging, the wall mount stand (the charging dock) and the desktop cradle. You can choose your favorite way of charging. The intelligent protection circuit provides protection against battery over-discharging, overcharging and short-circuiting, and also able to automatically terminate charging when charging completes. So you can just plug in and leave it there, easy as a breeze.

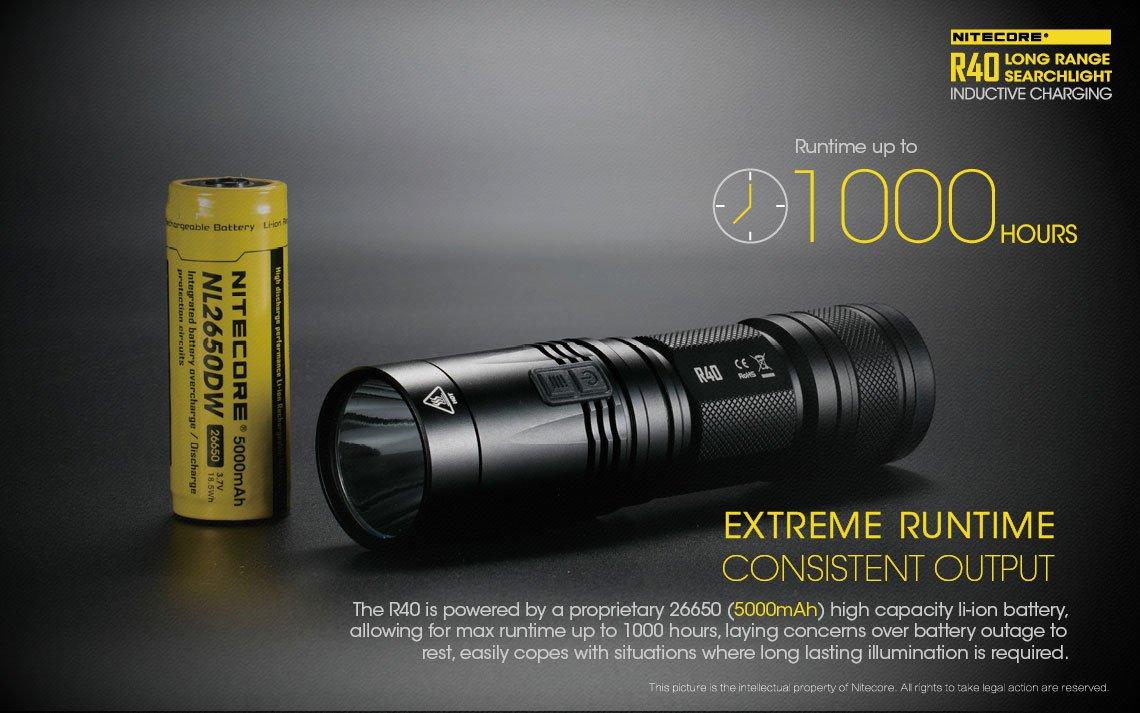

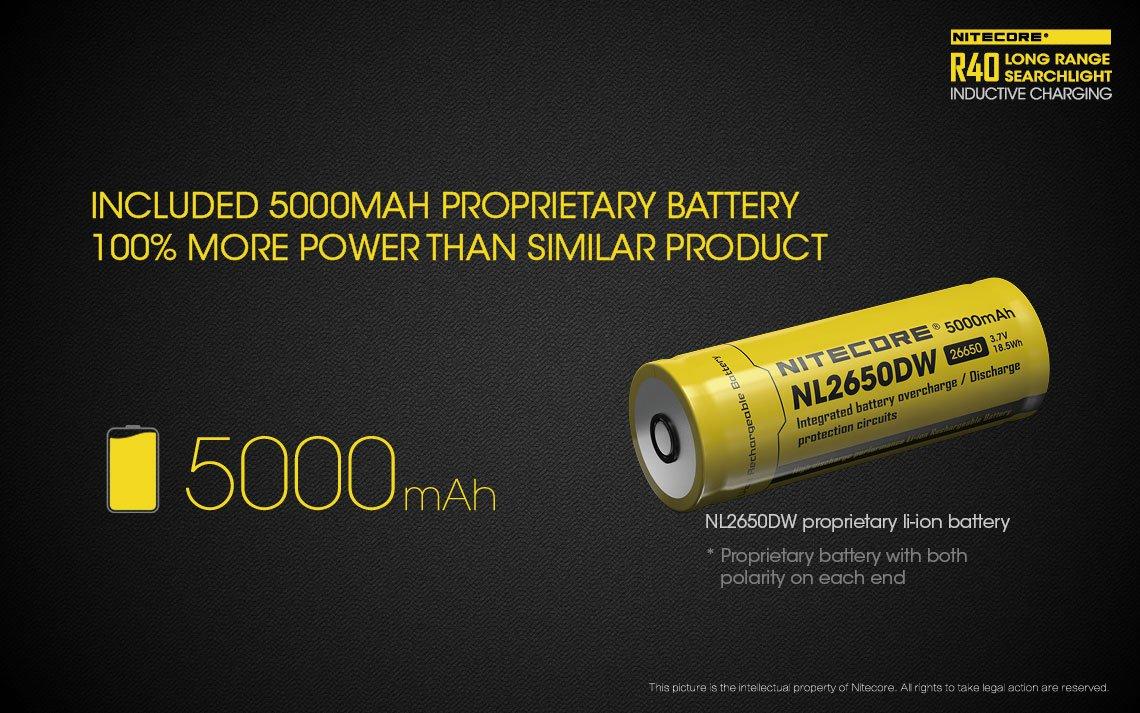

The R40 also comes with a proprietary 26650 (5000mAh) high capacity li-ion battery, allowing for max runtime up to 1000 hours, laying concerns over battery outage to rest, easily copes with situations where long lasting illumination is required.

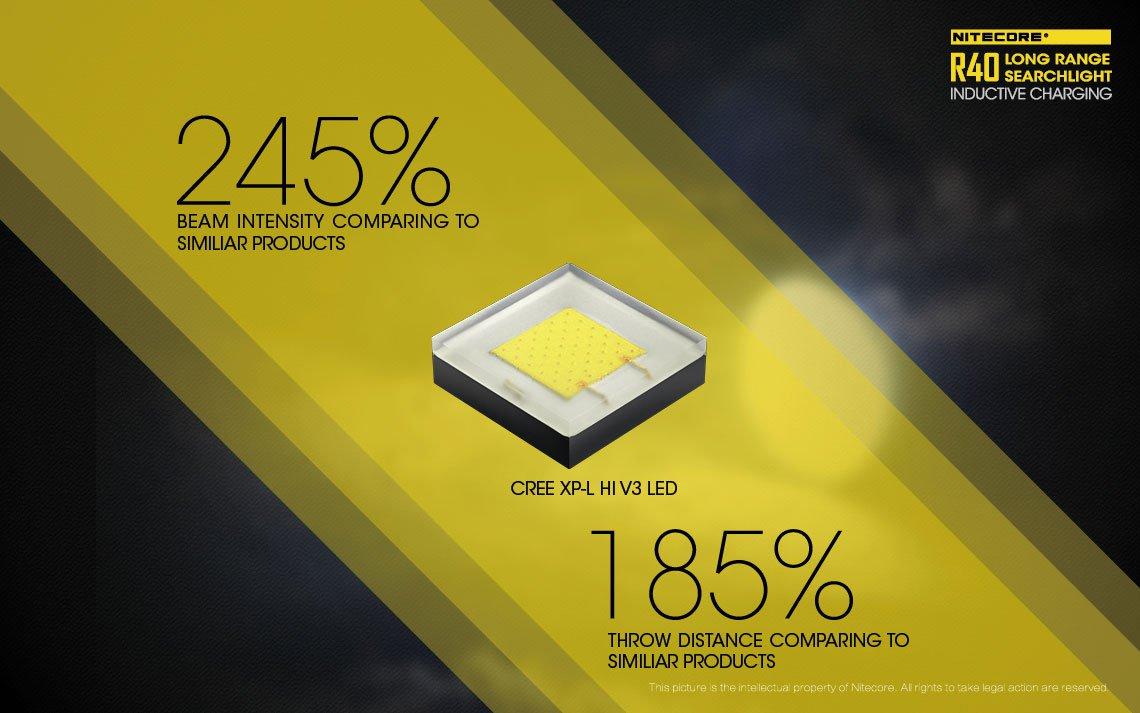

A CREE XP-L HI V3 LED combined with a reflector that employs Nitecore’s Precision Digital Optic Technology to drastically increase light concentration and throw distance of as far as 520 meters, ideal for large scale search and rescue tasks.

The employed thermoelectric separation technology ensures heat generated from the LED is transferred to the exterior rapidly through an accommodated copper substrate, driving the CREE XP-L HI V3 to its fullest potential while extending its life span. Along with the ATR technology, the R40 is designed to stay at constant low temperature.

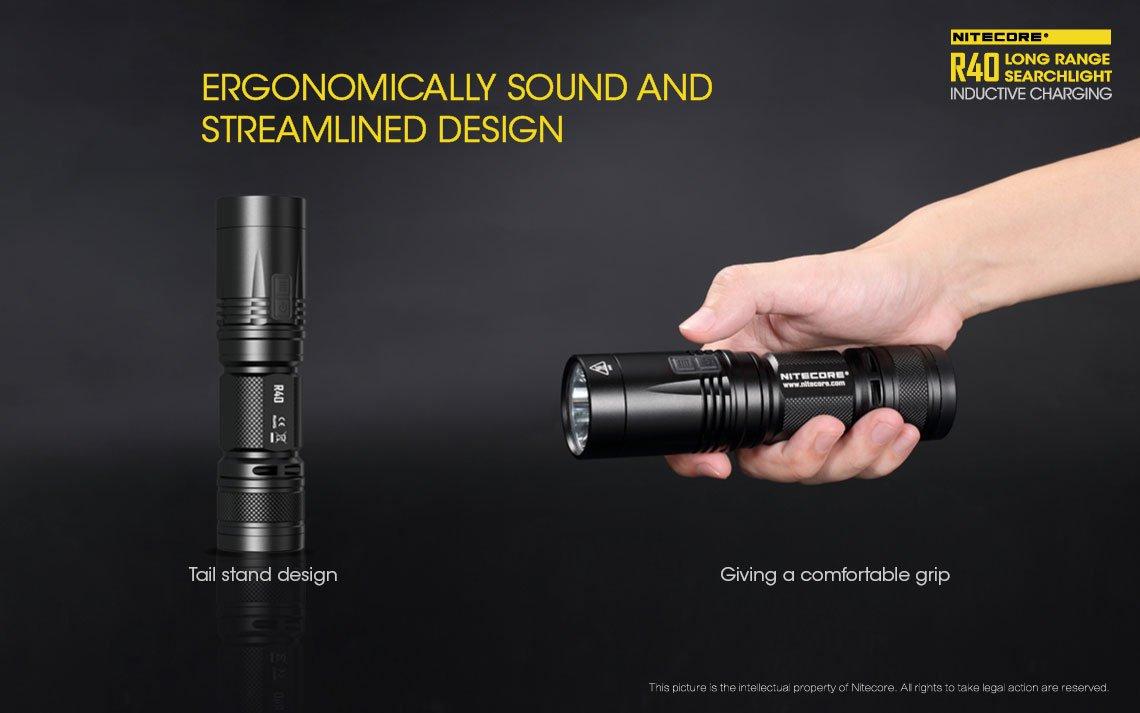

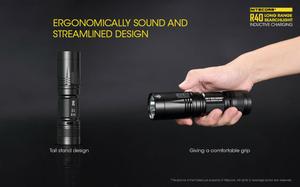

Dual-switch user interface offers quick access to different modes and brightness levels. Ergonomically sound and streamlined design gives a comfortable grip. IPX8 waterproofness and 1.5 meter impact resistance makes it ideal for all weather operations.

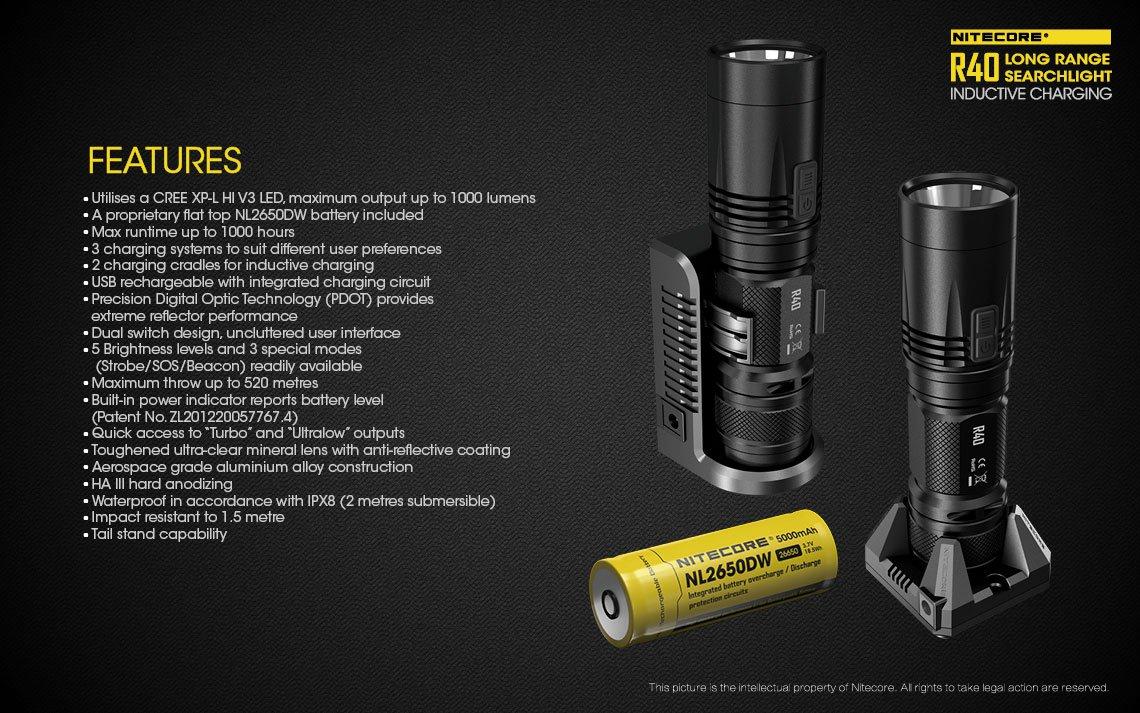

Features & Specifications

• Utilises a CREE XP-L HI V3 LED, maximum output up to 1000 lumens

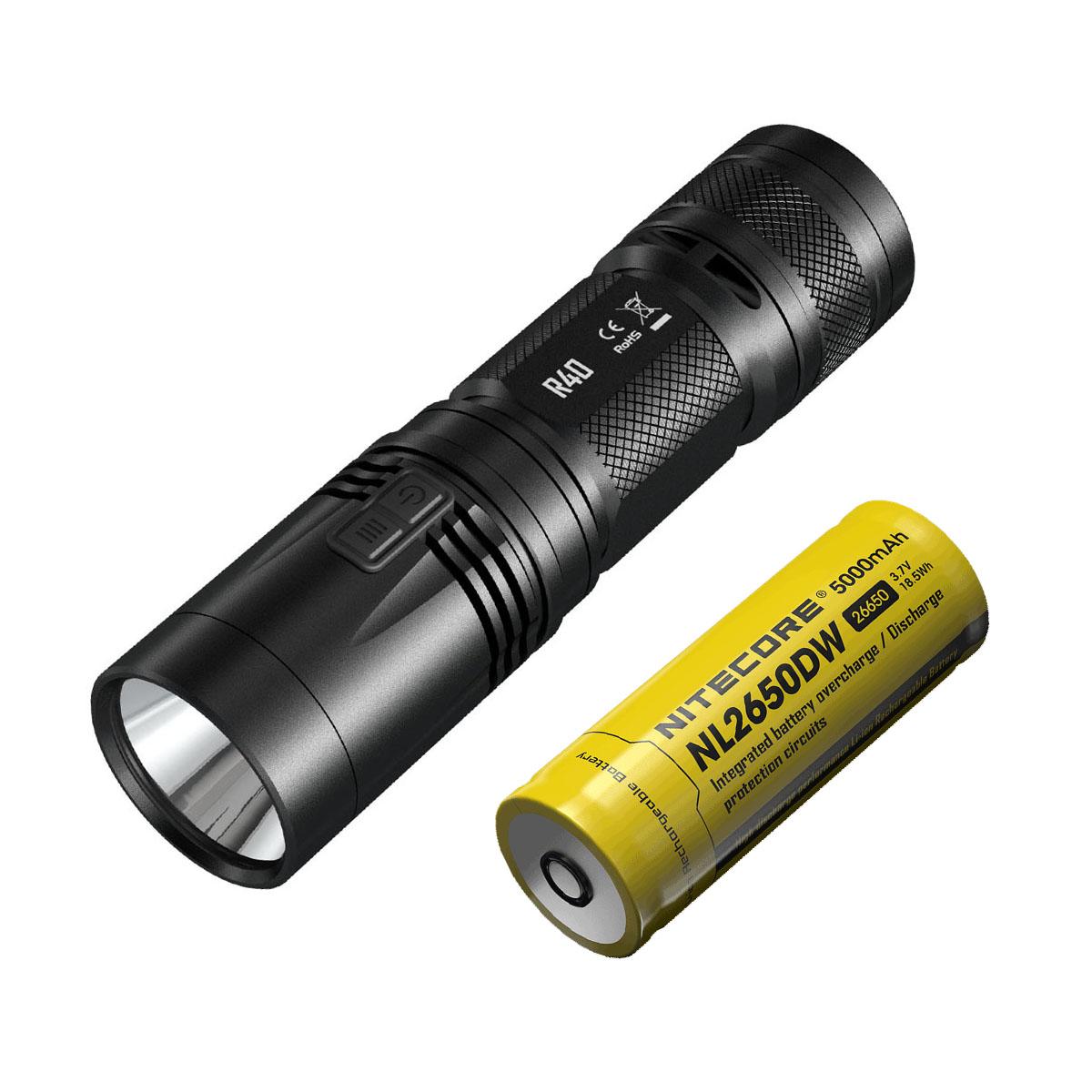

• A proprietary flat top NL2650DW battery included
• Max runtime up to 1000 hours
• 3 charging systems to suit different user preferences
• 2 charging cradles for inductive charging
• USB rechargeable with integrated charging circuit
• Precision Digital Optic Technology (PDOT) provides extreme reflector performance
• Dual switch design, uncluttered user interface
• 5 Brightness levels and 3 special modes (Strobe/SOS/Beacon) readily available
• Maximum throw up to 520 metres
• Built-in power indicator reports battery level (Patent No. ZL201220057767.4)
• Quick access to “Turbo” and “Ultralow” outputs
• Toughened ultra-clear mineral lens with anti-reflective coating
• Aerospace grade aluminium alloy construction
• HA III hard anodizing
• Waterproof in accordance with IPX8 (2 metres submersible)
• Impact resistant to 1.5 metre
• Tail stand capability

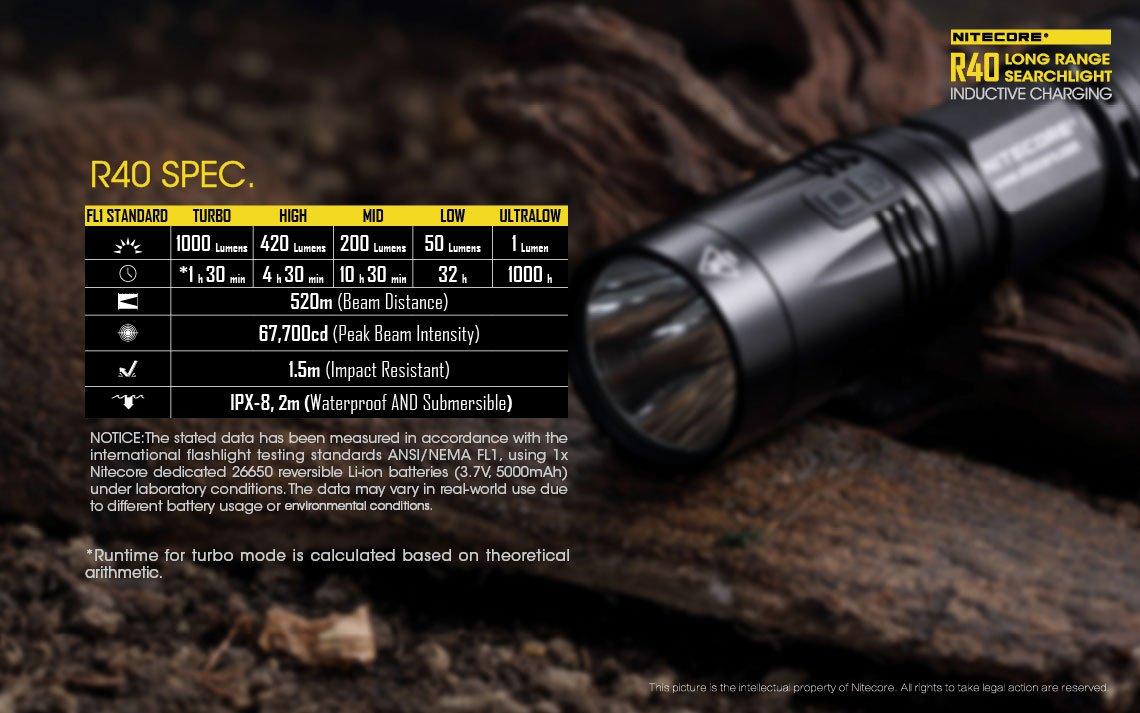

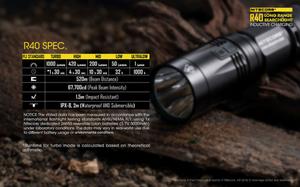

Output / Runtime: 1x proprietary 26650 battery:

• Turbo: 1000 lumens / 1.5 hours
• High: 420 lumens / 4.5 hours
• Medium: 200 lumens / 10.5 hours
• Low: 50 lumens / 32 hours
• Firefly: 1 lumen / 1000 hours
• Beam intensity: 67,700 cd

Charging cradles specification

• Input: DC 5-12V 1A(MAX)
• Output: 5V 1A(MAX)
• Wall mount cradle: 3.7”x2.1”x2.24”(94mm x 53.5mm x 57mm) Weight: 2.64oz (75g)
• Desktop cradle: 2.28”x2.28”x1.49”(58mm x 58mm x 38mm) Weight: 1.29oz(36.6g)
• Battery Options
• The NL2650DW is a Nitecore proprietary battery dedicated for the R40 only.
• *The R40 is designed to work with the NL2650DW battery only, it shall not be used with other button top
• or flat top 26650 batteries.

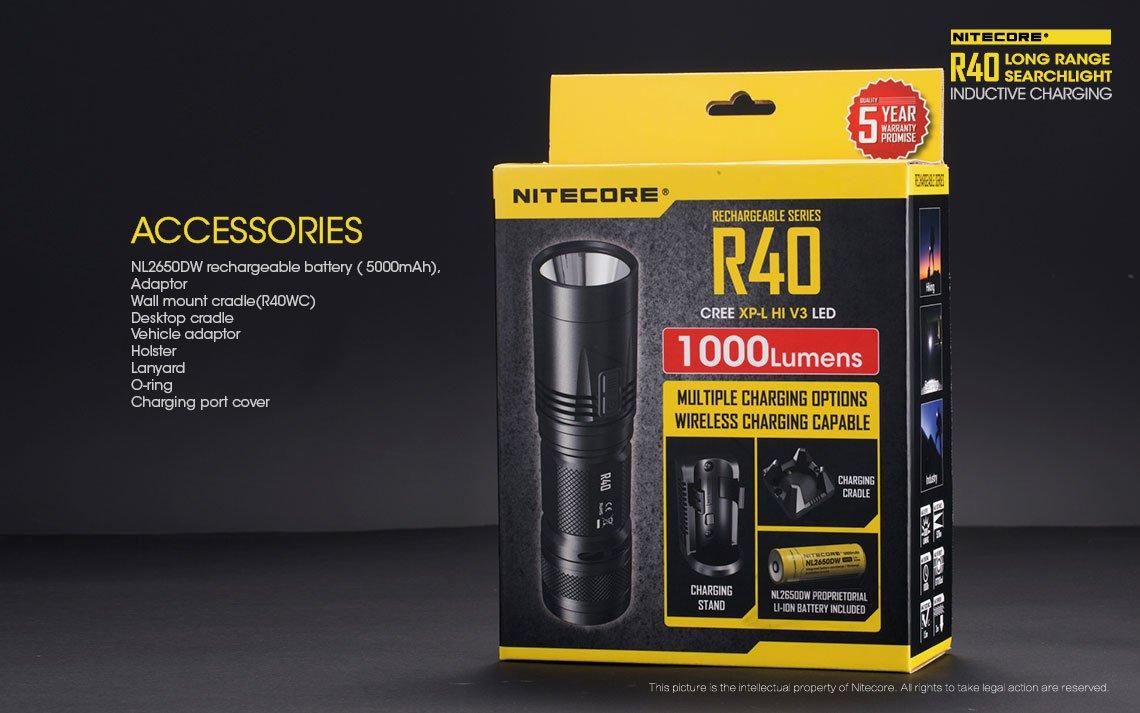

Includes

• Holster
• Lanyard
• O-ring
• Charging port cover,
• NL2650DW rechargeable battery (3.7V 5000mAh), (The NL2650DW battery can also be purchased separately)
• Adaptor, Wall mount cradle(R40WC),
• Desktop cradle
• Vehicle adaptor
