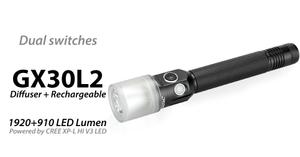

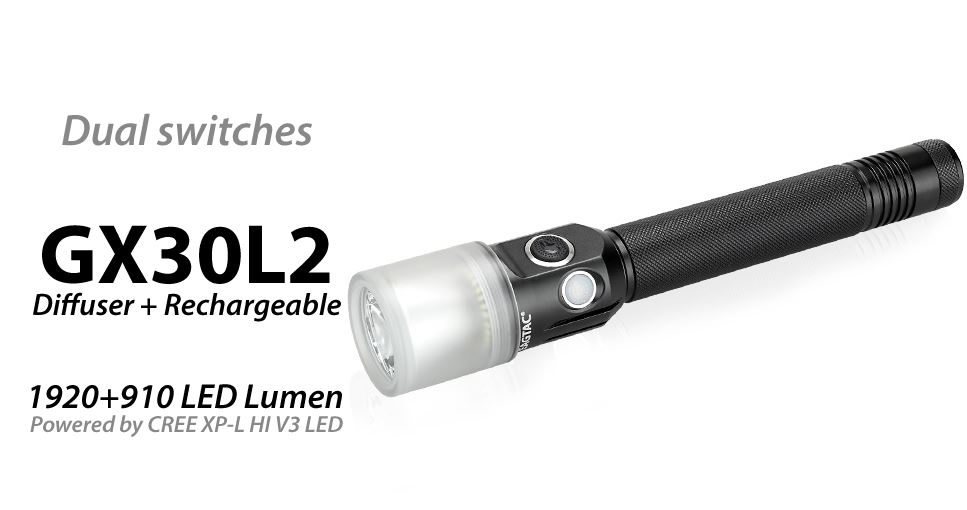

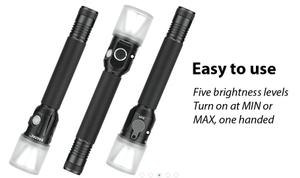

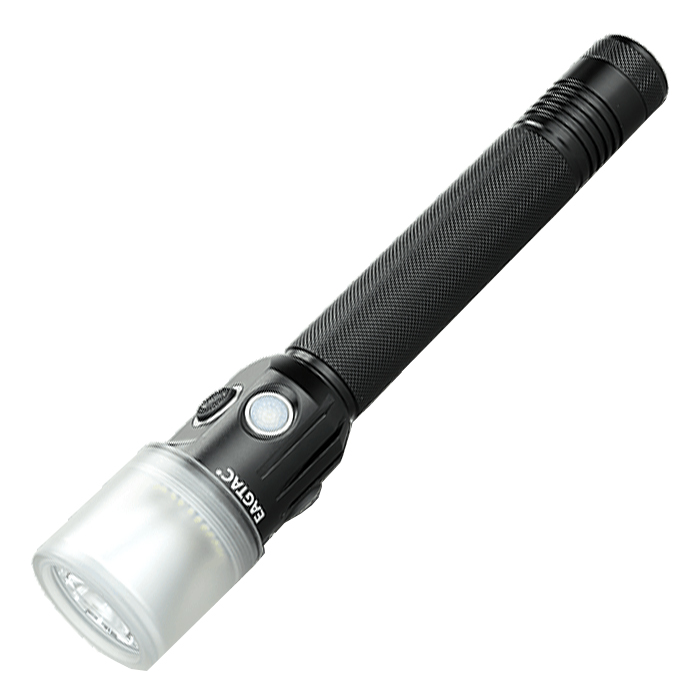

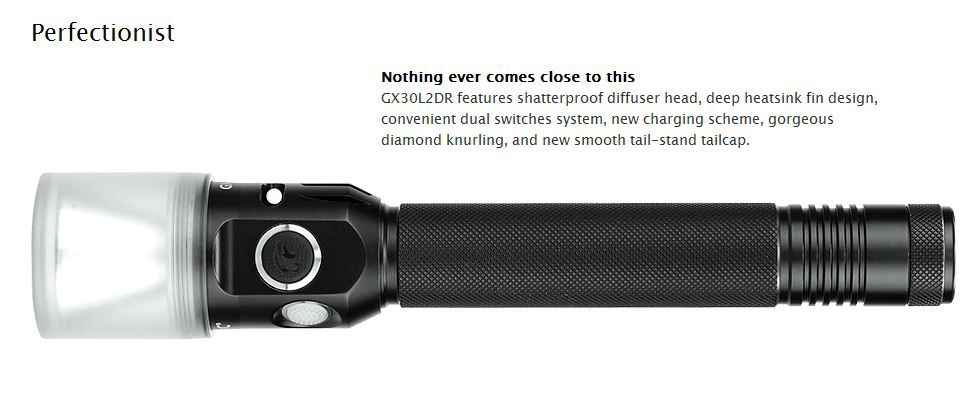

Here comes the groundbreaking LEO / professional flashlight that offers spot and diffused output in one LED flashlight. GX30L2DR offers new LED and driver for the highest output and beam distance in its class. It also features upgraded high capacity li-ion battery pack and new fast charging system. The all-new innovative two buttons control that allows user to conveniently opreate the light with one-hand only.

Features & Specifications

Battery Type

• EAGTAC 7.4V rechargeable li-ion battery
• R18/R19/R22/R25
• Warning! Only use the built-in charger when you are using EAGTAC 7.4V battery pack (why?)
• Read precaution with li-ion batteries.
• For emergency use: 2x18650 or 4xCR123A with compatible size (diameter/length): CR123A2: (16-16.8mm/34-34.5mm), 186502: (18-18.8mm/67-68.5mm)

Operating voltage: 5.4V - 12V

• All batteries are connected in series. Do not exceed 12V. Do not use rechargeable 3.0V/3.7V RCR123A.

Carrying method

• Para-cord lanyard with quick attachment clip
• Rigid nylon holster w/ retention device

Waterproof

• IPX-8 standard

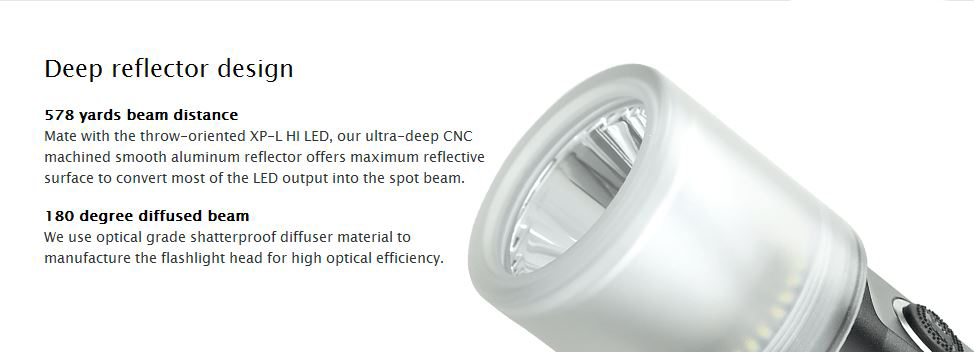

Reflector

• Smooth aluminum reflector

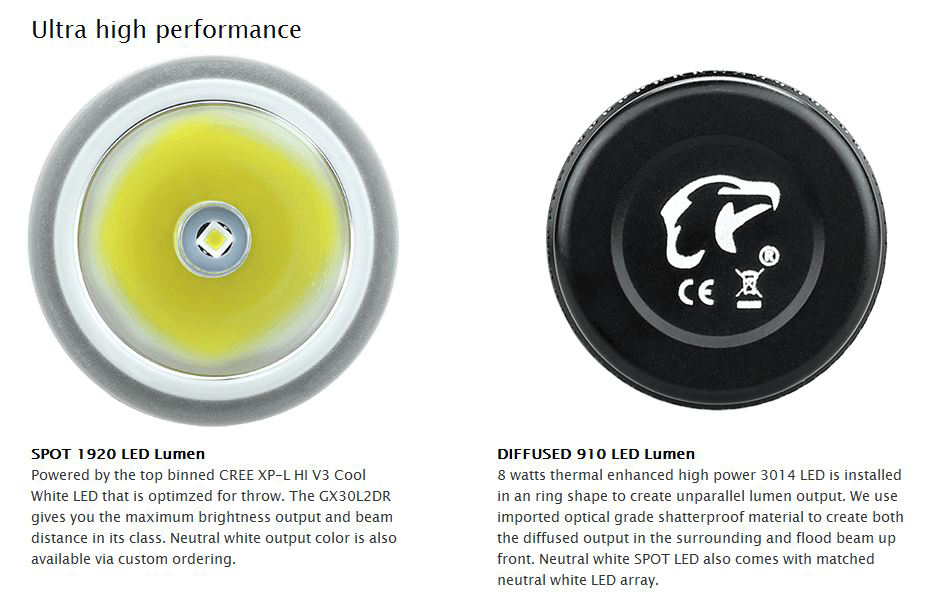

LED

• CREE XP-L HI V3 Cool White LED + Flood LED Array (C.W.)
• Max output: CREE XP-L HI V3 Cool White LED
• LED lumen: 1700
• ANSI FL-14 lumen: 1250

Beam Profile

• CREE XP-L HI V3 Cool White LED
• Center lux: 70,300 lux
• Center spot angle: 4°
• Spill light angle: 56°
• Beam distance: 578 yards / 530 meters
• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

LED circuit

• C5500 DIFF
• Current regulated synchronous buck driver w/ efficiency of up to 96% (Vin=6V, MAX level)
• Wide voltage input range
• Non-dimming constant current regulation for all output levels without flicking

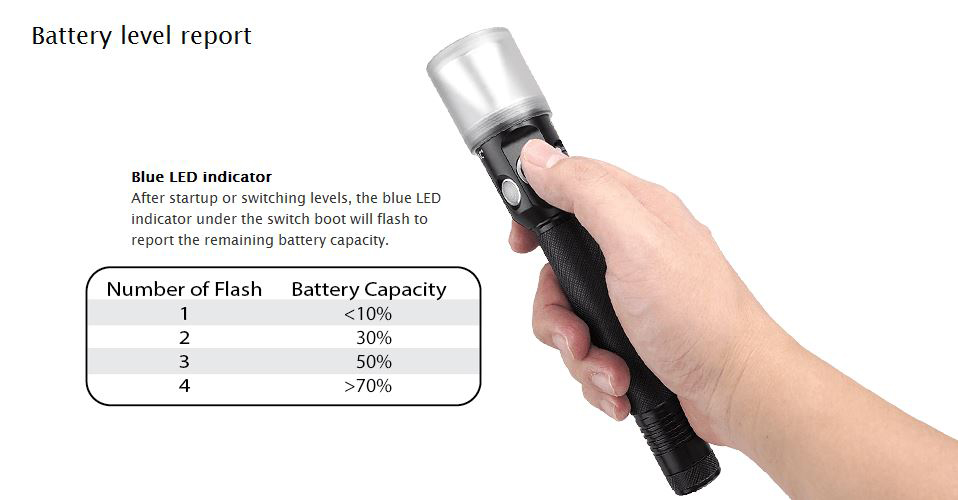

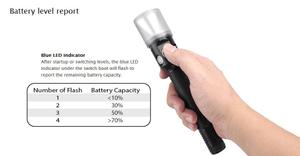

• Battery level report system
• Energy saving feature5
• High switching frequency controller for more compact circuitry design
• Dual LED channels output
• Very low standby current (negligible)

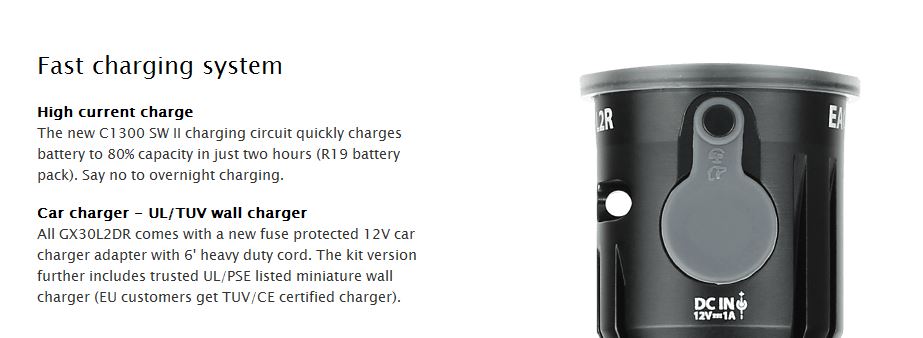

Charging circuit

• C1300 SW II
• Highly efficient step-down charging IC
• Voltage input 10V - 12V
• Compatible with 12V automobile DC socket
• Constant current and constant voltage charging method
• Fast charge to 80%/75% in two hour (R19/R25)
• Very high charging voltage accuracy (1%)
• Small current charge for low voltage battery
• No trickle charge when battery is full
• Automatically ends charging when charging current reduces below 10%

Material

• HAIII hard anodization aerospace aluminum
• Optical grade shatterproof diffuser material

Output and Runtime

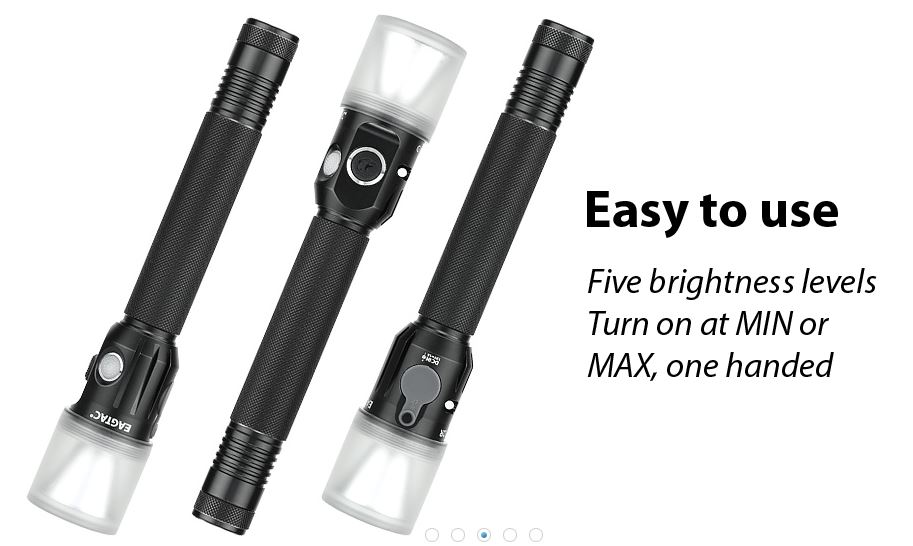

• Five brightness levels (SPOT only)
  • Led lumen:
  • 1700/1080/445/165/20
    • ANSI FL-1 lumen:
    • 1250/860/360/130/17
• Runtime:
  • 1/2/6/20/150+ hours (R19) 6
  • 1.3/2.5/8/26/200+ hours (R25)
• Five brightness levels (Diffuser only)
  • LED lumen: 910/440/170/65/8
  • Runtime:
    • 2.4/5.8/15/50/150+ hours (R19)
    • 3/7.5/20/65/200+ hours (R25)
• Five brightness levels (SPOT + Diffuser)
  • SPOT LED lumen: 880/450/160/48/4
  • Diffuser LED lumen: 910/440/155/45/4
  • Runtime
    • 1.2/3/9/34/150+ hours (R19)
    • 1.5/3.8/12/44/200+ hours (R25)
• Three hidden auxiliary outputs7
  • Disoriented Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions

• Head Dia.: 1.6 inches (39.5 mm)
• Body Dia.: 1 inches (25.4 mm)
• Length: 8.5 inches (215 mm)
• Weight: 9.6 ounces (270 grams)1a, 6.1 ounces (173 grams)1b

What's included

• GX30L2DR flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• Silicon waterproof cap
• Flat tail-stand tailcap
• 7.4V rechargeable li-ion battery
• 12V car charger adapter w/ 6 foot heavy duty high current cord

Two models:
    Base

• 7.4V 2600mAh (R19) rechargeable li-ion battery pack using authentic Sanyo Japanese cells

    Kit

• 7.4V 3400mAh (R25) rechargeable li-ion battery pack using authentic Panasonic Japanese cells
• (US) UL certified/listed, PSE certified/listed 12V 1A wall miniature charger
• (EU) TUV/CE certified/listed 12V 1A wall charger
• Rigid nylon holster w/ retention device
