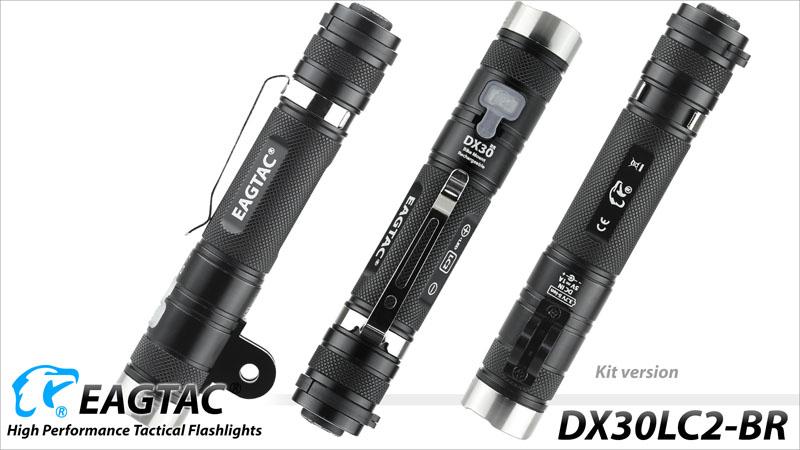

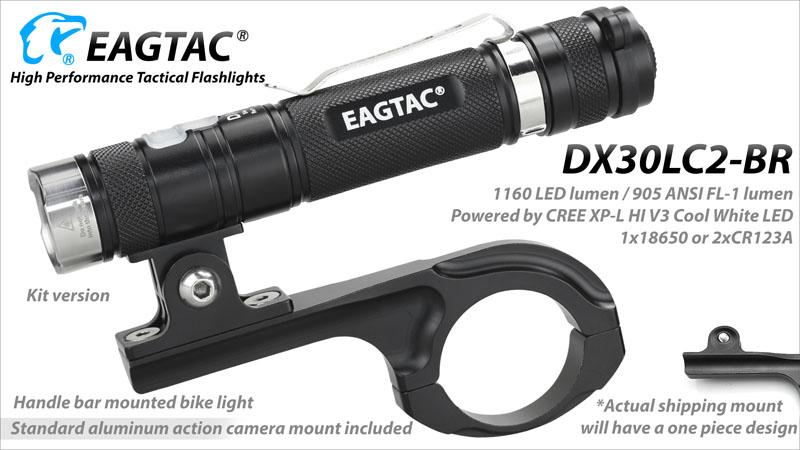

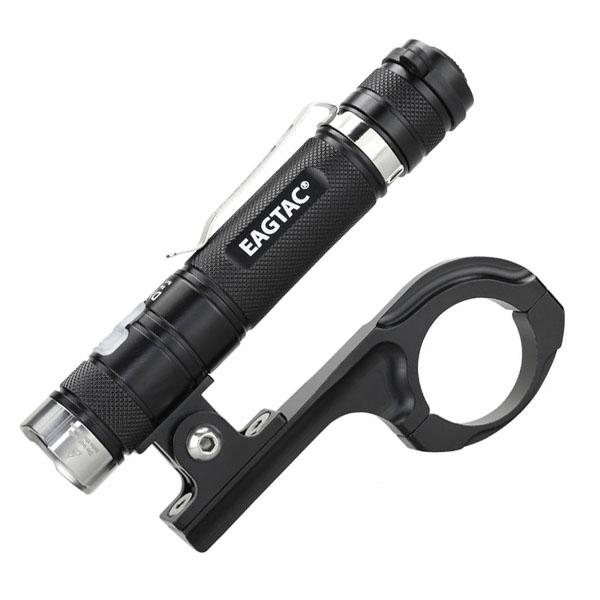

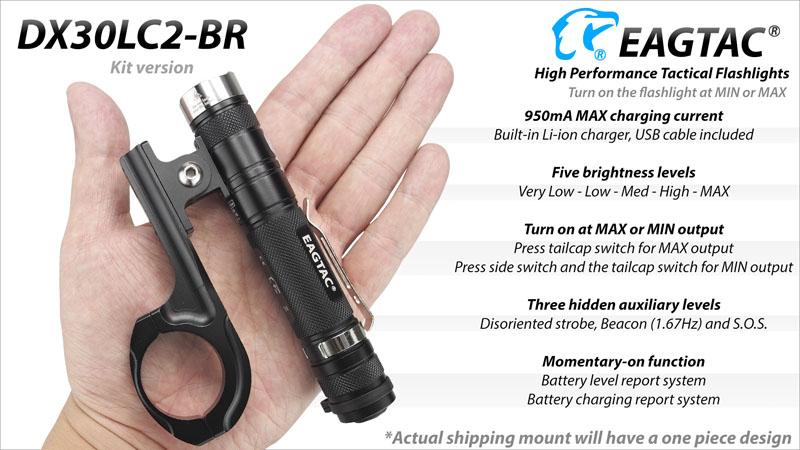

DX30LC2-BR, this is the bike version of the DX30LC2-R. This br model receives an adjustable aluminum robust mounting system that is compatible with the standard gopro action camera mount system. The kit version will also receive the custom made stainless steel slotted thumb screw and more.

Features & Specifications

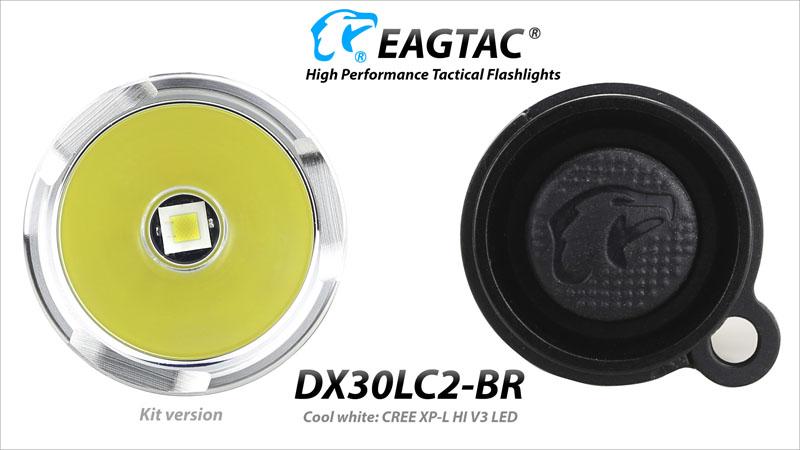

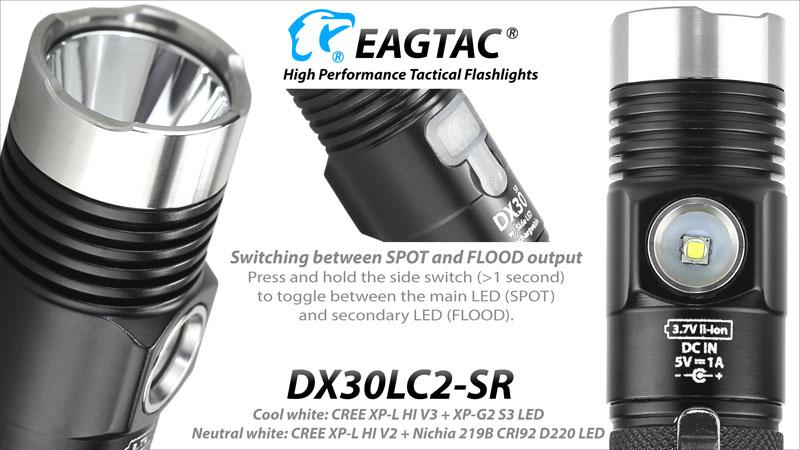

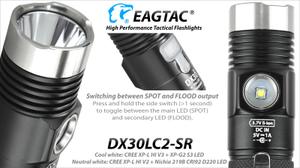

• LED: (Cool White) Spot CREE XP-L HI V3 + Flood CREE XP-G2 S3
• Max output
  • Cool White
  • CREE XP-L HI V3
  • LED lumen: 1160 / 500
  • ANSI FL-14 lumen: 905 / NA
• Beam Profile
  • CREE XP-L HI V3 Cool White LED - SPOT
  • Center lux: 20,800 lux
  • Center spot angle: 5.2°
  • Spill light angle: 62°
  • Beam distance: 314 yards / 288 meters
• Battery Type
• 1x18650 or 2xCR123A2
• The built-in li-ion rechargeable function only works with a single 18650 battery
• Compatible battery (diameter/length)
  • 123A: (16-16.8mm/34-34.5mm)
  • 18650: (18-18.8mm/67-68.5mm)
• Read precaution with li-ion batteries.
• Operating voltage: 2.7V - 6V  (Do not use two rechargeable 3.0/3.7V RCR123A)
• Carrying method
  • Para-cord lanyard with quick attachment clip
  • Heavy duty nylon holster
• Waterproof: IPX-8 standard
• Reflector: Light textured aluminum reflector
• Material: HAIII hard anodization aerospace aluminum
• Lens - Spot/Flood
• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

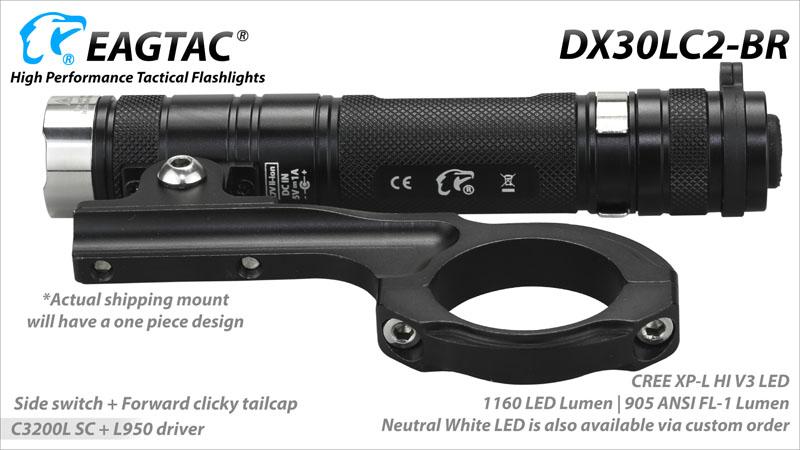

• LED circuit:  C3200L DIFF3 SC

Charging circuit

• L950 SC
• 5V USB input (requires 1A or higher)
• 950mA MAX charging current
• Constant current / Constant voltage charging logarithm
• Small current charging for low voltage battery (less than 3.0V)
• Precise voltage detection design +/- 1%
• No trickle charge
• Smart charging level report system

Output and Runtime

• Five brightness levels - Spot only
  • Led lumen: 11605-980/590/221/77/9
  • ANSI FL-1 lumen: 9055-790/475/178/62/7
  • Runtime:1.5/2.8/8.5/28/200+ hours (1x18650)6, 0.8/1.5/5/17/140 hours (2xCR123A)
• Five brightness levels - Flood only
  • Led lumen:500/260/111/50/9
  • Runtime:3.3/7.5/19/45/200+ hours (1x18650) 6
• Five brightness levels - Spot + Flood
  • Led lumen: 926/445/192/60/9
  • Runtime: 1.8/4.5/12/35/200+ hours (1x18650) 6, 1/2.5/6.5/22/140 hours (2xCR123A)
• Dimensions
  • Head Dia.-  0.9 inches (23 mm)
  • Body Dia.-   0.85 inches (22 mm)
  • Length-   5.2 inches (132 mm)
  • Weight-   2.4 ounces (67 grams)  w/o battery

What's included

• DX30LC2-BR flashlight

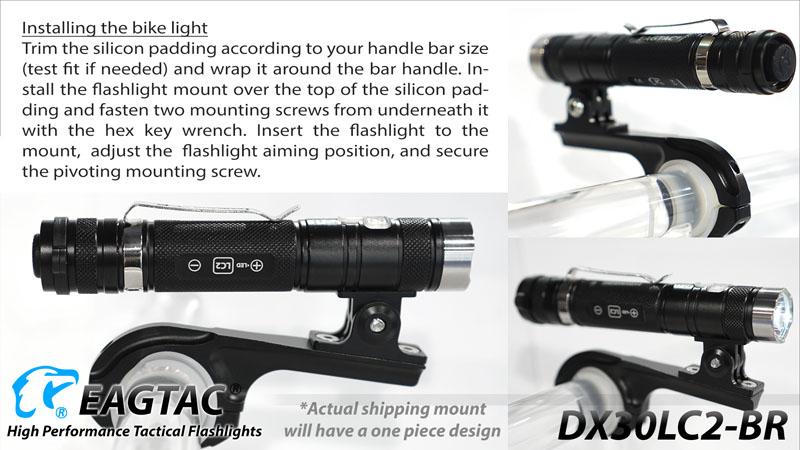

• Aluminum bike mount set
• Silicon padding for installation
• hex key wrench
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• CR123A Battery Magazine
• Removeable silver pocket clip made of spring steel w/ harden treatment
• USB charging cable (3.3feet/1meter) w/ AWG24 copper wire
• EAGTAC 18650 Li-ion battery included
• Crenelated stainless steel bezel
• UL certified USB 5V 1A wall charger (100V-240V)
• Stainless steel slotted thumb screw
• Heavy duty nylon holster
