Brand: XTAR
- Your Price:
- $70.99

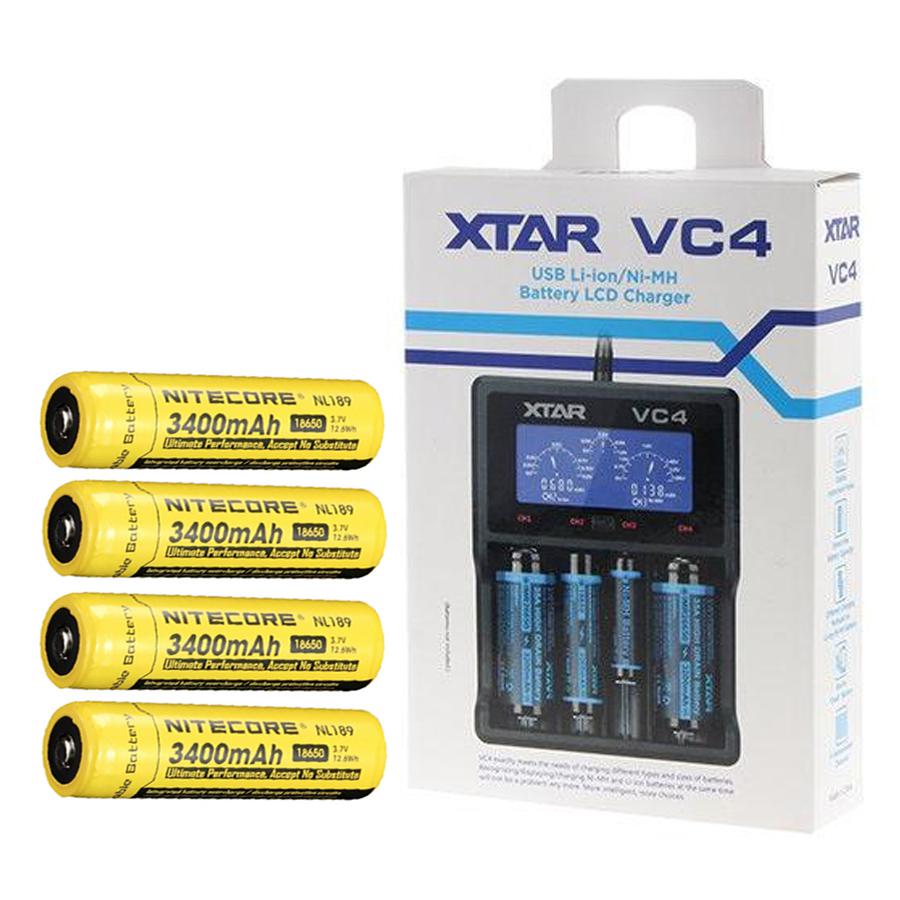

Combo: XTAR VC4 Charger -4 Port -USB w/4x NL189 Batteries
XTAR VC4 Charger -4 Port -USB w/4x NL189 3400mAh Rechargeable 18650 Batteries
The XTAR VC4 charger is a combination of our XP4C and VC2 charger! This intelligent charger can recognize, charge, and display charging current, battery voltage, and charge capacity of both Ni-MH and Li-ion batteries at the same time! This is a USB powered charger so it can be plugged into any of your existing AC USB wall adapter plugs (e.g. Apple, Samsung, etc.)
The charger is compatible with:
10440/14500/14650/16340/17500/17670/18350/18490/18500/18650/18700/22650/25500/26650/32650 3.6V/3.7V Li-ion and AAAA/AAA/AA/A/SC/C/D. and Ni-MH/Ni-CD batteries so there's no need to buy a separate charger for each battery type.
The basic kit includes:
- XTAR VC4 charger
- USB charge cable
- Retail packaging
- Premium pouch
- User manual
- Warranty card
Features & Specifications
1. Innovative LCD screen displays charging current, battery voltage, and charging capacity. It can also intelligently recognize and charge Ni-MH and Li-ion batteries and clearly display this information.
2. Intelligently identify a battery's input power and automatically adjust suitable charging method and charging current from 0.1A to 1.0A and up to 0.5A*4 / 1.0A*2 max.
3. Three charging stages (TC-CC-CV) can prolong your batterie's life.
4. Soft start will prevent any sudden current spikes which is used to prolong battery lifespan.
5. The charger can tell you the real capacity of your batteries.
3. Three charging stages (TC-CC-CV) can prolong your batterie's life.
4. Soft start will prevent any sudden current spikes which is used to prolong battery lifespan.
5. The charger can tell you the real capacity of your batteries.
Worry-free Charging:
1. Automatically stops charging when battery is fully charged and will automatically start charging again if the battery falls below 3.9V. This allows you to keep the batteries inside the charger overnight.
2. Intelligently identifies bad batteries by showing “null” and “Err” if reverse polarity has been detected.
3. ABS durable fireproof shell with perfect heat dissipation and high temperature resistance.
Functionality:
1. Four independent slots making each port operate like 4 separate chargers.
2. 0V activation function which rescues your overly discharged batteries when in most cases the batteries must be discarded. With our chargers you can bring them back to life.
3. Compatible with any USB power adapter or wall adaptor.
4. 2-minute non-activity backlight feature; inserting batteries will activate full LCD screen brightness, pressing the mode button for 1.5s can turn off the backlight at your will.
Lithium battery charging parameter:
|
Input Power |
DC 5.0V 2.1A |
|
0.5A CC Current |
500±50m A |
|
1.0A CC Current |
1000±80m A |
|
Cut-off Voltage |
4.20±0.05V |
|
Operation Temperature |
0-40℃ |
Ni-MH battery charging parameter:
|
Input Power |
DC 5.0V 2.1A |
|
0.5A Pulse Charging Current |
500±50 mA |
|
1.0A Pulse Charging Current |
1000±80 mA |
|
Cut-off Voltage |
1.45±0.1V |
|
Operation Temperature |
0-40℃ |
Nitecore NL1834 18650 Battery - Upgraded from the NL189 18650 battery, 3.7V 3400mAh - 4 Pieces
The Nitecore NL189/NL1834 18650 Battery is the best 18650 so far, it has a remarkably safe record. It is perfect for high performance devices like the intense LED flashlights, devices and appliances. The NL1834 comes with a sophisticated high-performance protected circuit that prevents the cell from overcharging and discharging. The cell is capable of being recharged over 500 times, making it a cost effective 18650 battery.
The NiteCore NL189 3400mAh 18650 rechargeable li-ion battery has built in IC protection that will protect against damage due to both low and high voltage. These batteries are designed to perform under high discharge applications. You may charge these batteries over and over for years to come with a rating of more than 500 charge-discharge cycles. This is a button top cell making it easier to use with many flashlights. Rechargeables offer a great value over standard primary batteries. 3400mAh 3.7V 12.6Wh.
Specifications:
-
3400mAh 3.7V 18650 Li-ion Rechargeable NL189/NL1834 Batteries
-
Integrated overcharge & discharge protection circuits
-
500 charge cycles
-
Voltage: 3.7V
-
Max Charging Current: 2A
-
Max Discharge Current: 5A
-
Diameter: 0.72" (18.4mm)
-
Height: 2.72" (69.2mm)
-
Weight: 1.67 oz (47.6 g)
