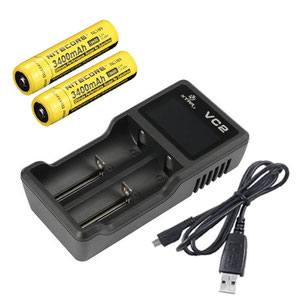

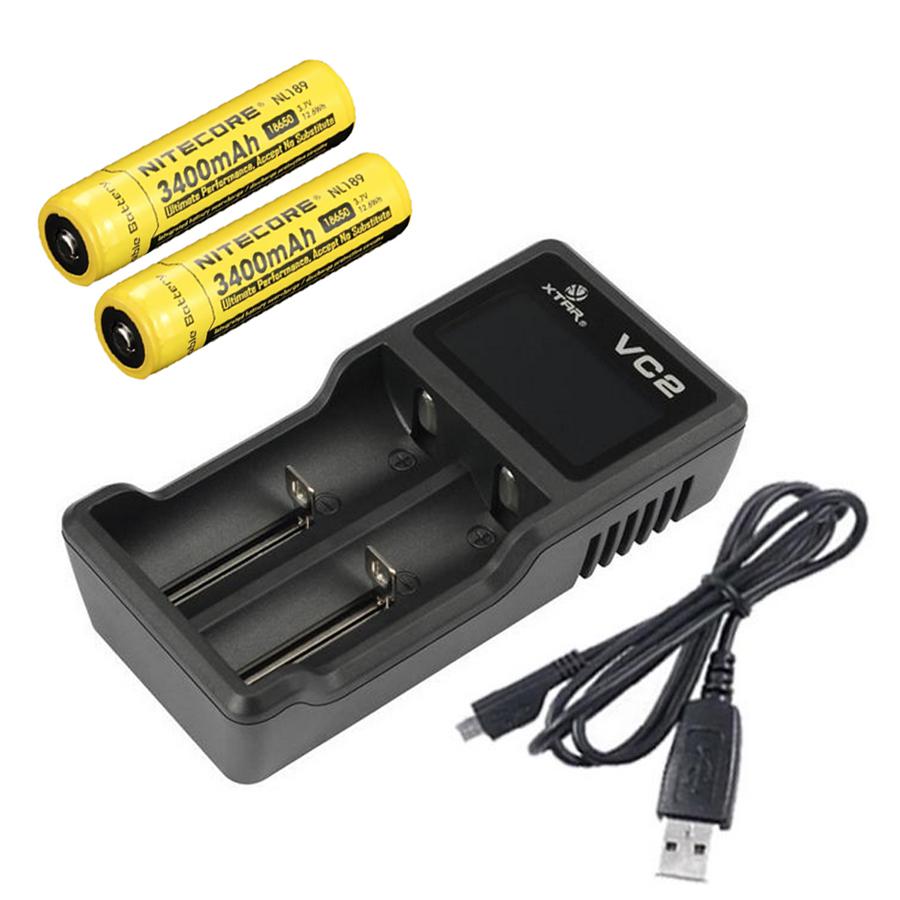

Xtar VC2 Charger with 2x Nitecore NL189 3400mAh Rechargeable 18650 Batteries

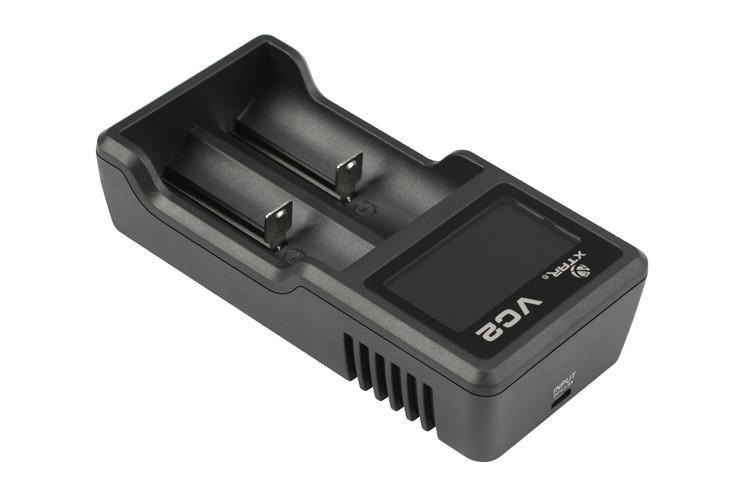

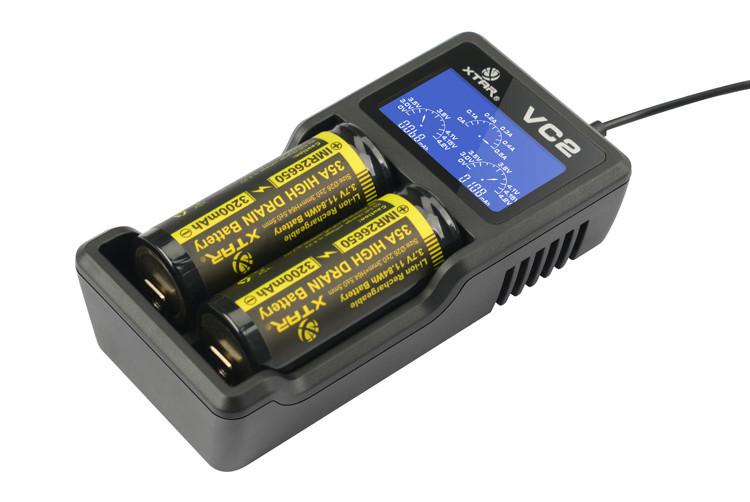

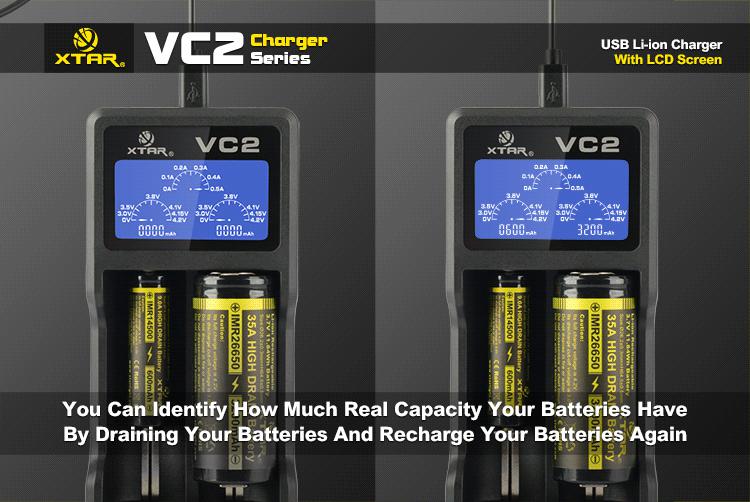

The XTAR VC2 charger is the World's first lithium-ion battery charger that features an innovative tachometer-style LCD display screen. This charger will tell you the real power of your battery! The VC2 will display the batteries mAh capacity assuming it is completely drained before charging. Like all of our chargers, it can intelligently identify input power and automatically adjust the most suitable charge current (0.15A~0.5). It is compatible with both IMR lithium batteries and small capacity batteries. Both channels are independent and it can also tell you if you have bad batteries. What's Included: VC2 charger. MicroUSB cable . Microfiber carrying pouch . User manual . Warranty card. Input DC: 5V 1.0A. Max Constant Charging Current: 500mA*2 . Cut-off Voltage (Output Voltage): 4.20V . Cut-off Current: 80mA . Working Temp: 0-40 . Net Weight: 109g . Dimensions: L131*W66*H33mm. Applies to: 10440/14500/14650/16340/17500/17670/18350/18500/18650/18700/22650/25500/26650 3.6/3.7V Li-ion batteries . Features: Each channel is independent . Three-stage charge algorithm(TC-CC-CV). Automatically cut off when the battery is charged fully. Precision cut-off voltage at 4.2V . Compatible with small capacity battery. Use high power intelligent step-down DC - DC circuit, greatly reduce the energy loss; Built-in reverse-polarity and short-circuit protection circuit . Use fireproof material for the shell . 0V activation function can wake up the over-discharged/sleeping batteries . 120°angle high definition VA screen to display the charging current ,voltage and power indicator, you can see the charging status from any angle of view. Certified by CE, RoHS.

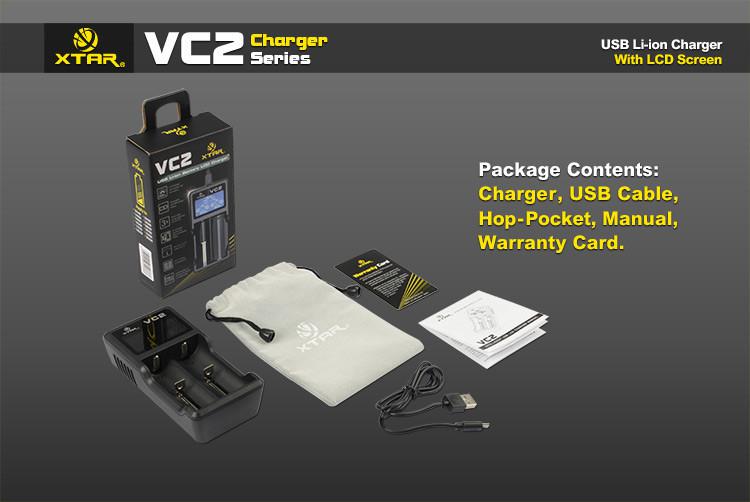

Includes:

• XTAR VC2 charger
• USB charge cable
• Retail packaging
• Premium pouch
• User manual
• Warranty card

Features & Specifications

• Countdown timer for each bay showing the time it needs to be fully charged. You can completely master your time and plan ahead.
• Battery power icon and percentage display. You can clearly know the battery power and charging status by ramping up from 0% to 100% when the battery is fully charged. And screen also will display “Full”
• Red LED indicator turns green upon a full charge.
• XTAR 0V Activation Function can revive “damage” (low voltage) battery to save your money.
• Compatible with any 5V USB power including USB wall adaptors, cell phone chargers, solar panel, PC USB, etc. No need to buy other adaptors. Use 5V 2.1A input power can maximize the advantages of the VC2 .
• Automatically stop charging when complete and restart charging function makes it safe to keep the batteries inside the charger overnight.
• Compatible with 10440/14500/14650/16340/17335/17500/17670/18350/18490/18500/18650/18700/22650/25500/26650/32650 3.6V/3.7V Li-ion/IMR/INR/ICR and AAAA/AAA/AA/A/SC/C/D Ni-MH/Ni-CD batteries
• ABS durable fireproof shell with perfect heat dissipation and high temperature resistance, keep the cell temperature impressive low during the charging.

USB Output Function:

• Power-Path USB output enables you to charge both batteries and the external device at the same time while power is connected. VC2 Plus Master is more than a charger for your batteries. It also a charger for your device.
• Display the battery power while as a power bank. Clearly know the battery power discharging status by ramping down from 100% to 1% and then stop charging external device.

Advanced Technology:

• With Optional charging currents, you can control the charging speed (0.5A/1.0A) as you like. Ensure fast charging while also prolong the battery life.
• Automatically detect battery type and choose the most suitable charging method. Using TC-CC-CV charging for Li-ion battery and pulse charging for Ni-MH/Ni-CD battery. You can mix and charge all kinds of batteries together.
• XTAR Current Buffering Charging Technology protects the batteries from high current impact during the charging process.

Intelligent LCD Screen:

• Displays charging current, battery power percentage, countdown timer to fully charge. VC2 Plus Master can intelligently recognize/ display/ charge Ni-MH and Li-ion batteries at the same time.
• If a bad battery can't be activated, the screen will display “null”, and if polarity-reverse or charger short circuit happens, screen will display “Err”.
• The backlight will automatically go into an energy saving mode without any operation (e.g. inserting a battery to be charged or pressing a button) after 2 minutes. Feature can be enabled manually by pressing the button for 1.5 seconds to save energy and avoid light pollution.

Lithium batteries charging parameter:

Ni-MH batteries charging parameter:

USB output parameter:
