Features & Specifications

• CREE XP-L HI V2 Neutral White LED
• LED lumen: 1303
• ANSI FL-14 lumen: 905
• Center lux: 75,900 lux
• Center spot angle: 4°
• Spill light angle: 54°
• Beam distance: 601 yards / 551 meters
• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)
• Waterproof: IPX-8 standard
• Smooth aluminum reflector
• HAIII hard anodization aerospace aluminum
• LED circuit: C3800 SC
• Ultra low dropout voltage for longer current regulated runtime
• Active thermal management feature5
• Low internal resistance design offers up to 99% efficiency
• High switching frequency (1MHz) controller for more compact circuitry design
• Non-dimming constant current regulation for all output levels without flicking
• Smart battery level report system
• Energy saving feature5
• Zero standby current
• Battery Type: 1x18650 or 2xCR123A or 2x18650 (kit)2
  • 123A: (16-16.8mm/34-34.5mm)
  • 18650: (18-18.8mm/67-68.5mm)
  • Operating voltage: 2.7V - 8.4V
  • All batteries are connected in series. Do not exceed 8.4V.
• A blue LED indicator under the main switch reports the estimated battery remaining capacity
  • Flash once: lower than 20%
  • Flash 3 times: 20%-50%
  • Flash 3 times: 50%-80%
  • Flash 4 times: higher than 80%

Output and Runtime

• Led lumen: 1303-1065/675/243/82/9
• ANSI FL-1 lumen: 10835-914/579/204/69/7
• Runtime:
  • 1.5-1.8/2.5/8/25/170 hrs (1x18650)6
  • 0.5-0.7/1.4/5/15/100 hrs (2xCR123A)
  • 1.5-2.3/4.5/15/45/300 hrs (2x18650)
• Three hidden auxiliary outputs7
• Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions

• Head Dia.- 1.8 inches (47 mm)
• Body Dia.- 1 inches (25.4 mm)
• Length- 5.4 inches (138 mm)1
• Weight-  4.9 ounces (138 grams)1

What's included

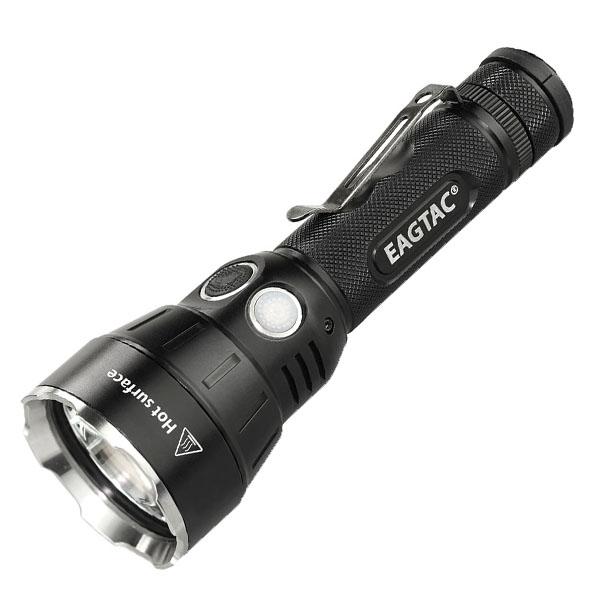

• SX30C2 flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• CR123A Battery Magazine
• Removeable darken pocket clip made of spring steel w/ harden treatment
• Crenelated stainless steel bezel
• Add-on diffuser filter with flip-cover feature
• Extension body tube for two 18650 li-ion batteries
• Heavy duty nylon holster
