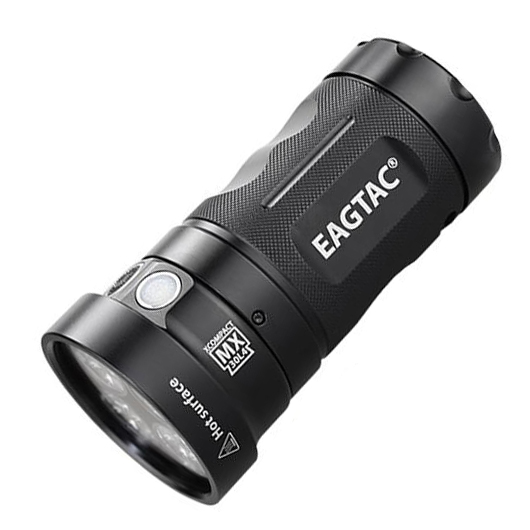

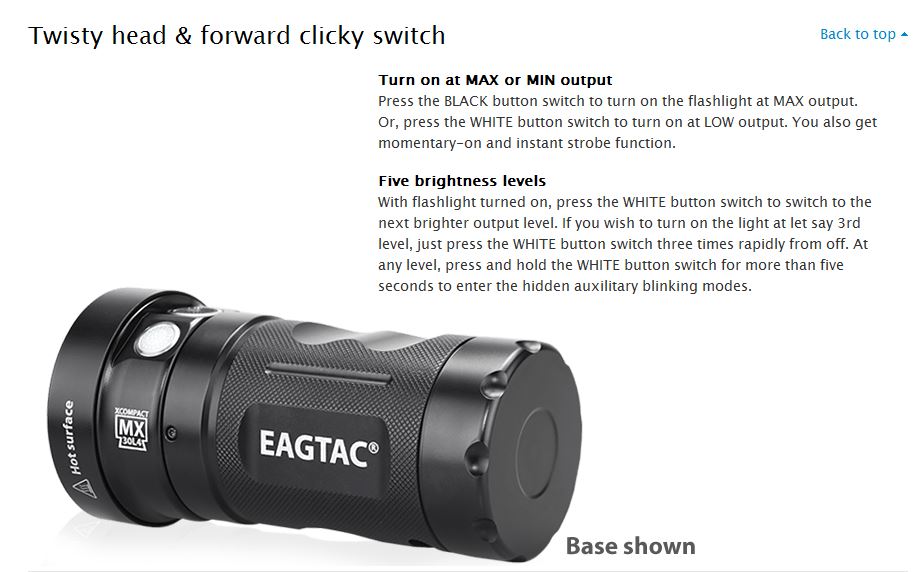

A big leap forward from its predecessor MX25(L4). The all-new ultra compact MX30L4XC is redesigned from ground up. It features miniature design, better heatsink, more rigid built, higher output, and better looking. The innovative two buttons switch design allows user to conveniently opreate the light with one hand only.

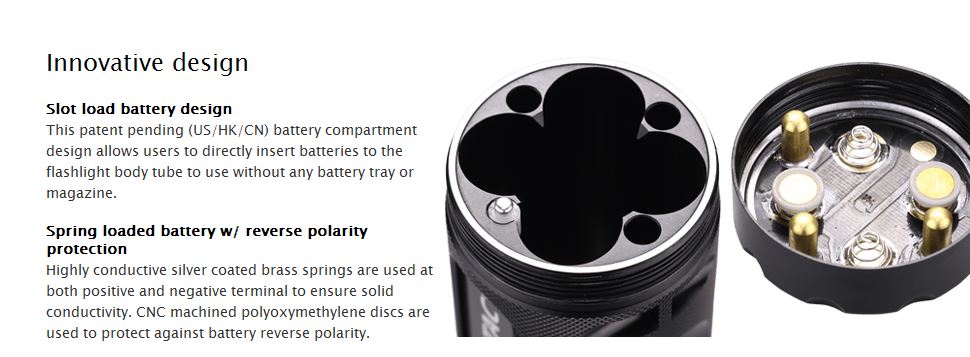

Battery Type

• 4x18650 or 8xCR123A2
• Compatible battery (diameter/length)
• 123A: (16-16.8mm/34-34.5mm)
• 18650: (18-18.8mm/67-68.5mm)
• Read precaution with li-ion batteries.

Operating voltage

• 10V - 24V
• All batteries are connected in series. Do not exceed 24V. Do not use rechargeable 3.0v/3.7V RCR123A.

Carrying method

• Para-cord lanyard with quick attachment clip
• Rigid nylon holster w/ retention device

Waterproof

• IPX-8 standard

LED

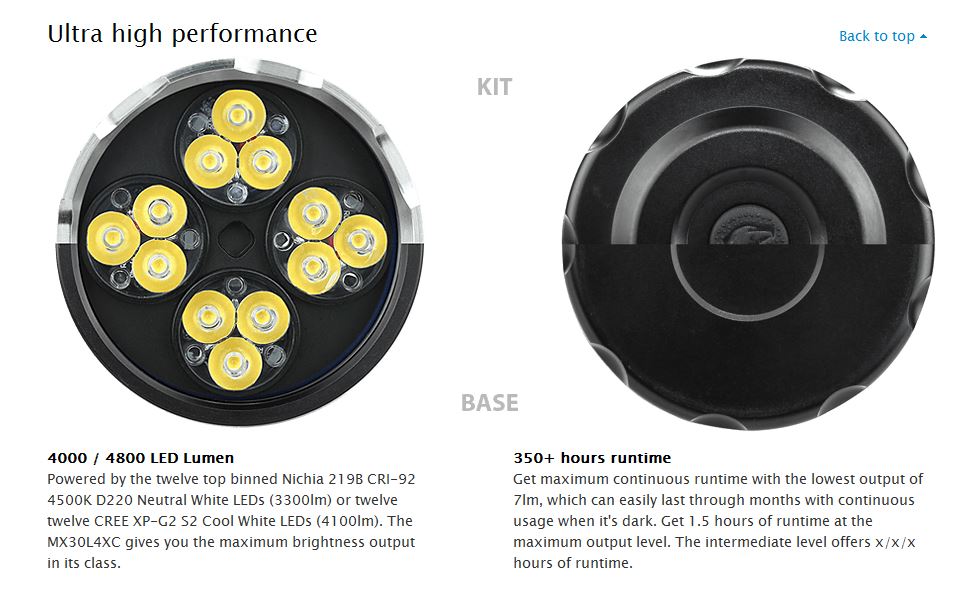

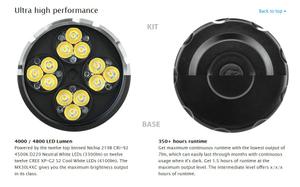

• 12 * CREE XP-G2 S2 Cool White

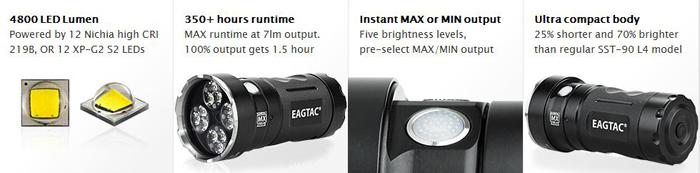

Max output

• 12 * CREE XP-G2 S2 Cool White LED
  • LED lumen: 4800
  • ANSI FL-1- lumen: 4030

Beam Profile

• 12 * CREE XP-G2 S2 Cool White LED
  • Center lux: 20,100 lux
  • Center spot angle: 24°
  • Spill light angle: 77°
  • Beam distance: 309 yards / 284 meters
  • 6500K

Lens

• Waterwhite glass lens w/ harden treatment and anti-reflective (AR) coating on both side (96% transparency) - Cool White LED
• Waterwhite glass lens w/ harden treatment for true color output - Neutral White LED

LED circuit

• C7000 HV
• Current regulated buck driver w/ efficiency of up to 93%
• Wide voltage input range
• 48-Watt output
• Non-dimming constant current regulation for all output levels without flicking

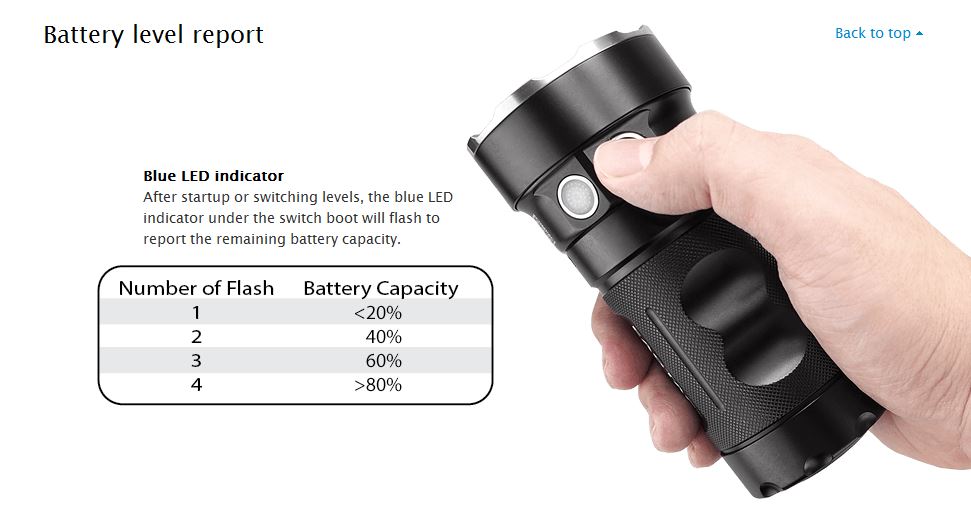

• Battery level report system
• Energy saving feature5
• High voltage mode (>18V) to reduce output lumen by 15% to enhance operational temperature
• Very low standby current (negligible)

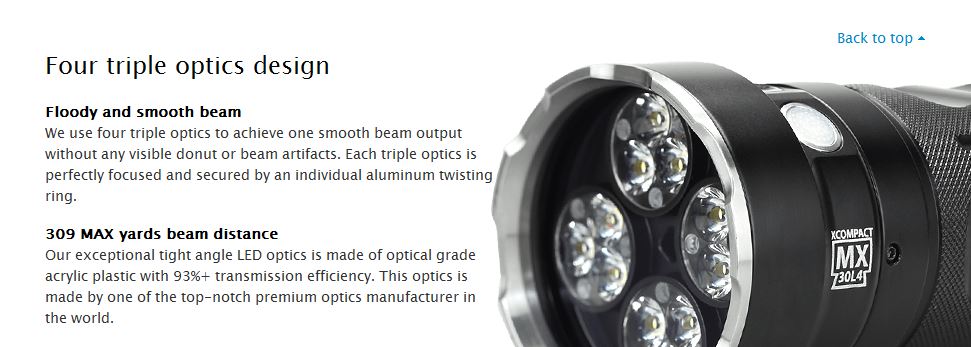

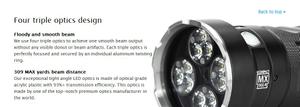

Optical system

• Four triple LED optics in optical grade acrylic

Material

• HAIII hard anodization aerospace aluminum

Output and Runtime

• Five brightness levels
  • Led lumen:
  • 12 * XP-G2:
  • 48005-3960/2664/1236/216/30
• ANSI FL-1 lumen:
  • 12 * XP-G2:
  • 40305-3320/2250/1051/182/26
• Runtime:
  • 1.5/2.5/6/35/300+ hours (4x18650)6
  • 0.7/1.3/3.1/22/200+ hours (8xCR123A)
• Three hidden auxiliary outputs7
  • Disoriented Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions

• Head Dia.: 2.5 inches (62 mm)
• Body Dia.: 2 inches (52 mm)
• Length: 5.1 inches (130 mm)
• Weight: 13 ounces (378 grams)

What's included

• MX25L4XC flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• 4xCR123A Battery Magazines

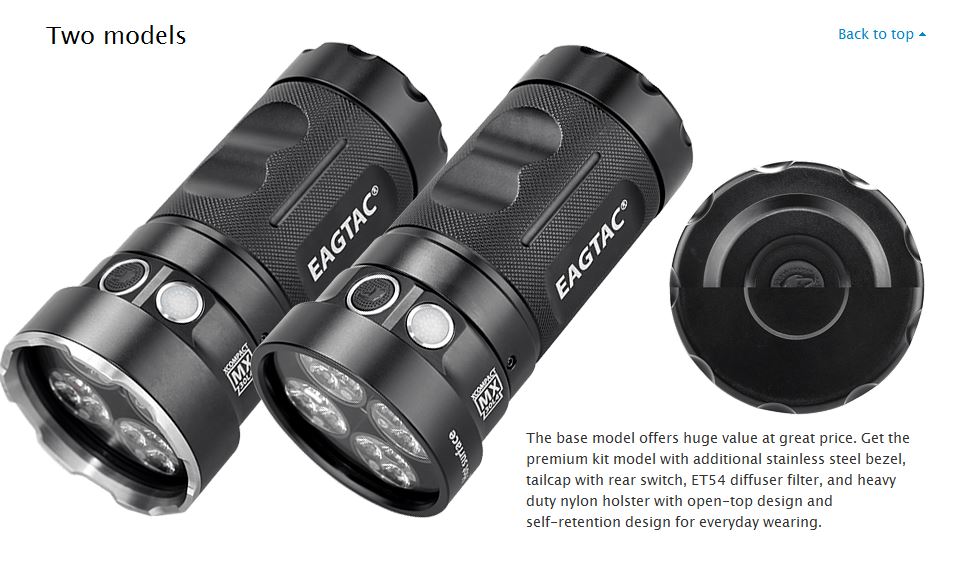

Two models
    Base

• Comes with smooth aluminum bezel
• Flat tail-stand tailcap

    Kit

• Comes with stainless steel bezel
• tailcap w/ switch and tail-standing ability
• signal connection through the body tube for rear accessories add-on
• Flashlight head come with front-mount thread for bezel and filter attachment
• Heavy duty nylon holsterw/ self-retention device and open-top design
• ET54 diffuser filter
