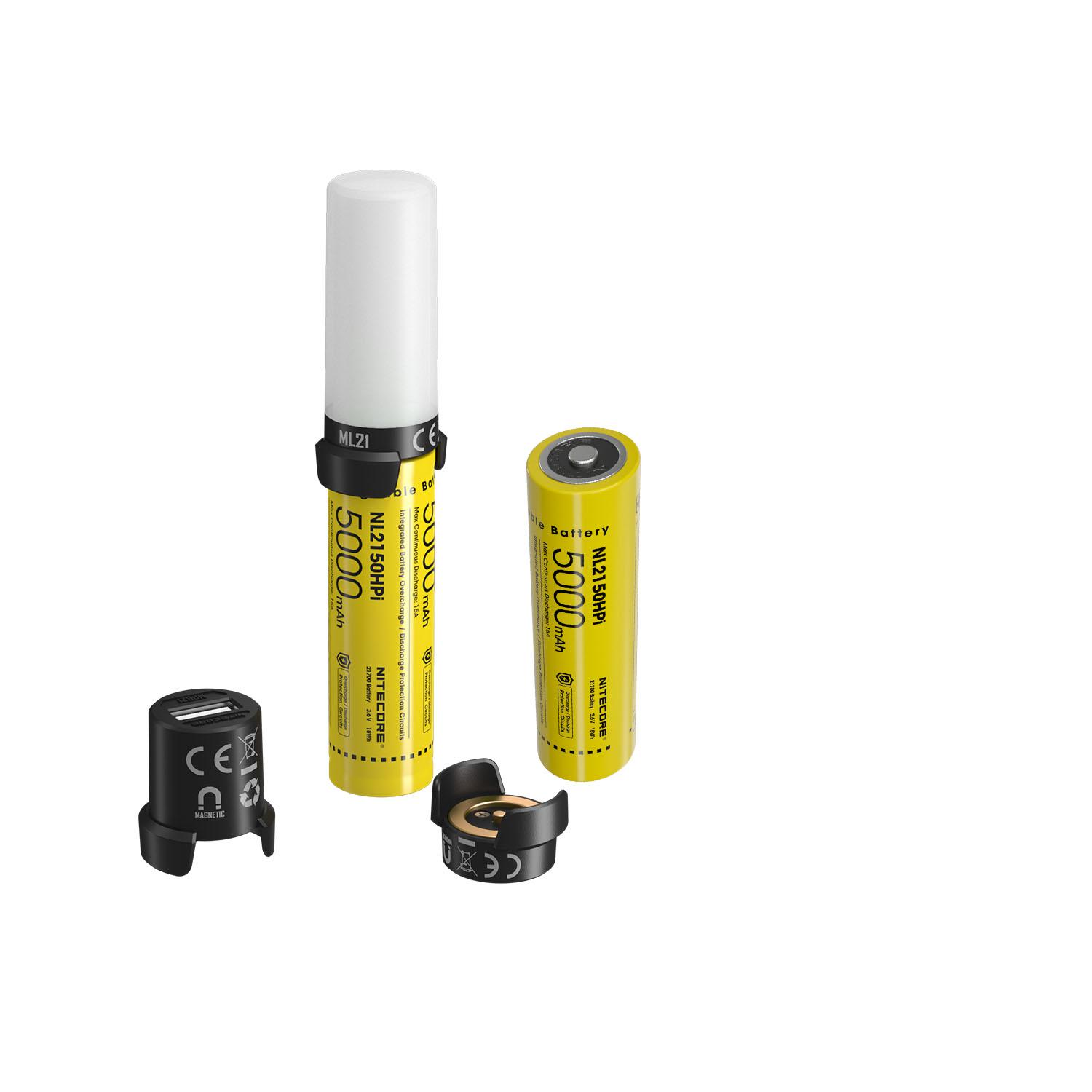

The 21700 Intelligent Battery System is an innovative power solution which consists of the NITECORE 21700 i Series Battery, the ML21 Magnetic Light, the MC21 Magnetic Charger and the MPB21 Magnetic Power Bank. Designed to offer a consistent power source and to minimize the burden in the outdoor activities, it can easily provide the necessary light source and transfer power between different devices on the go.

21700 i Series Battery

As a patent product developed by NITECORE (Patent No. ZL201820118916.0, US Patent Pending), the 21700 i Series Battery is a proprietary 21700 rechargeable Li-ion battery featuring dual way output with positive and negative polarities at both ends and a high energy density. It enables a highly efficient output by minimizing the loss of power due to internal resistance. A 21700 i Series Battery has an energy density of up to 240mWh/g, 11% higher than 18650 batteries.

The dual polarities of the 21700 i Series Battery at both ends have broken the convention of linking the head and the tail of the flashlight in order to minimize its size and weight. The internal resistance is therefore greatly reduced to offer a direct energy conversion to power the device. Thanks to the groundbreaking technology and techniques, this can bring more possibilities to our flashlight design, most notably the NITECORE i4000R Future Oriented 21700 Intelligent Tactical Flashlight. The 21700 i Series Battery is compatible with conventional chargers including NITECORE UMS2, UMS4, UI1, UI2 and more, besides other accessories in the 21700 Intelligent Battery System. It can also power conventional 21700 flashlights and other compatible devices.

ML21 High CRI Magnetic Light Module

With a max output of 80 lumens, it is perfect for either handheld or tail stand to be used in short-distance illumination such as reading, camping or emergency. Attach the ML21 to the end marked with (+) of the i Series Battery to activate the light. Detach to deactivate it.

MC21 Magnetic Charger Module

The incredibly tiny size significantly eases the outdoor burden. Attach the MC21 to the end marked with (+) of the i Series Battery before using the USB cable to connect an external power supply (e.g. a USB charging device) to the charging port to begin the charging process.

MPB21 Magnetic Power Bank Module

Combined with a 21700 i Series Battery, it aims to provide a consistent power supply in the outdoor environment. After attaching the MPB21 to the end marked with (+) of the i Series Battery, use the USB cable to connect a USB device to the input/output port to begin the charging process.

Features & Specifications

ML21

• Diameter: 22mm (0.87”)
• Height: 53.3mm (2.1”)
• Weight: 11g (0.39oz)

MPB21

• Diameter: 22mm (0.87”)
• Height: 23.5mm (0.93”)
• Weight: 10g (0.35oz)

MPB21 Magnetic Power Bank

• Input: 5V⎓2A (MAX)
• Output Voltage: 4.2V±1% (Battery) / 5V±5% (USB)
• Output Current: 2A (MAX)
• ML21 Magnetic Light
• Brightness 80 Lumens
• CRI ≥90
• Color Temperature 4000-4500K
• Runtime 19h
• Beam Diameter 12m
• Peak Beam Intensity 9cd
• Note: The stated data is measured using 1x5,000mAh 21700 i Series Li-ion battery under laboratory conditions. The data may vary in real world use due to different battery usage or environmental conditions.

21700 i Series Battery
As a patent product developed by NITECORE, the 21700 i Series Battery is a proprietary 21700 rechargeable Li-ion battery featuring dual way outputwith positive and negative polarities at both ends and a high energy density, including NL2140i, NL2150HPi and more. Thanks to the groundbreaking technology and techniques, it enables a highly efficient output by minimizing the loss of power due to internal resistance. Combined with other accessories in the 21700 Intelligent Battery System, it aims to provide a unique user experience in the outdoor environment. ML21 Magnetic Light Operating Instructions As shown in Diagram (1), attach the ML21 to the end marked with (+) of the i Series Battery to activate the light. Detach to deactivate it.

Warnings:
1. CAUTION! Possible dangerous radiation! Don't look into the light! Maybe dangerous for your eyes.
2. The product is only functional when combined with a NITECORE 21700 i Series Battery.
3. The product contains strong magnetic components. DO NOT put it close to objects that tend to suffer from magnetic interference.
4. The product will not work if attached to the end marked with (-) of the battery.
5. Please keep the connectors clean to avoid malfunctions due to an unstable contact .
